TOPDON AL200 vs. AL300 vs. AL500 [Full review and comparison]

OBDPlanet.com uses affiliate links as a means for us to keep this website up and running. We may receive a small commission when you buy through any affiliate links contained in this post and elsewhere on the site.
Learn more about our affiliate relationships here

Do you need a detailed comparison among TOPDON AL200 vs. AL300 vs. AL500? Well, you have come to the right place as in this article, we compare the three models in every aspect.

This article will talk about what a TOPDON code reader is and what a TOPDON scan tool can do for you. Following this, we also discuss the features and differences of AL 200, AL300, and AL500. so you can choose the right product that best fits your needs.

First of all, this TOPDON AL200 vs. AL300 vs. AL500 comparison chart gives a bird’s eye view of these products, including their similarities and differences.

TOPDON AL200 vs. AL300 vs. AL500: Comparison chart

BEST OVERALL RUNNER UP GREAT PICK
TOPDON AL500
TOPDON AL500
Check Price
TOPDON AL300
TOPDON AL300
Check Price
TOPDON AL200
TOPDON AL200
Check Price
Customer Rating
4.4
4.6
4.6
PriceTOPDON AL500 TOPDON AL300TOPDON AL200
Item Weight1.19 pounds12 ounces10.5 ounces
Product Dimensions6.44 x 3.71 x 1.23 inches4.72 x 2.82 x 0.92 inches10 x 1.8 x 6 inches
Read/Clear DTCs✔️✔️✔️
I/M Readiness Monitor Status✔️✔️✔️
View Freeze Frame✔️✔️✔️
Vehicle Information (VIN)✔️✔️✔️
ABS/SRS✔️
On-board Monitor Test✔️✔️
Live Data✔️✔️
EVAP Test✔️✔️
O2 Sensor Test✔️✔️
Smog Test✔️✔️
Software Update✔️
LED Lights✔️

Now, let’s jump in! And figure out what we have in this review.

TOPDON AL200 vs. AL300 vs. AL500: Detailed comparison

Key things in common

At first glance, there is a similarity in the design of these 3 TOPDON OBD2 scan tools. They are all corded OBD2 scanner. Also, all of them have some simple buttons that help navigation, choose a mode or exit. The screen shows direct information and is easy-to-use for new users.

Talking of functionality, all three can read/clear DTCs, view freeze frame data, read VIN or I/M readiness. Not only that, another common feature is that they are compatible with 1996 & newer vehicles.

Lastly, the manufacturer provides a 12-month quality warranty for each model which is a decent amount of time and can make you please.

TOPDON AL500 offers all OBD2 functions and 2 years warranty.

Key differences

This section will evaluate the key differences of AL200 vs. AL300 vs. AL500 across the below areas.

Design and specification

In a TOPDON AL200 vs. AL300 vs. AL500 comparison, the design and specification are the striking differences.

Firstly, AL500 is the most advanced model of the three. It comes with a lot more features and specifications. It includes a built-in DTC library with 3000+detailed definitions and an LED indicator to help you understand the severity of the situation. Furthermore, AL500 comes with an LED in the OBD2 cable, which allows you to find the OBD2 port in your car quickly.

When it comes to AL300 and AL200, both are relatively similar, except that AL300 is the more advanced version as it provides the entire gamut of OBD2 diagnostics as opposed to AL200 that only checks the basic functions.

Overall features and functions

When it comes to comparing the overall features and functions, it merits to note that the AL200 is an entry-level model with basic OBD functions geared to understand the effectiveness of status in your engine and AT systems.

In comparison, AL300 is a slightly more advanced version as it covers the complete OBDII functionality, while the AL500 is an advanced model that comes with a host of features that enhance the usability of OBD2 scanners and, at the same time, provide all the information you need to make an informed choice.

Extra features/functions

Out of the three, AL500 is the most advanced and offers more functionality in an O2 sensor test and an on-board monitor system. It also comes with advanced software that works well on Windows operating systems to give you comprehensive information about your vehicle’s health.

AL300, on the other hand, offers the complete functionality of OBDII. It also provides live data, and you can use it for smog and EVAP tests. It gives the VIN of the vehicle as well.

However, AL200 does not support any extra features as it is a relatively basic model, and it only reads codes, erases them, views freeze frames, and checks for I/M readiness.

Supported protocols

All three TOPDON scan tools are compatible with KWP2000, ISO9141, J1850 VPW, J1850 PW, and CAN (Controller Area Network) protocols.

Supported vehicle makes

All three models support all vehicles that are OBD2 compatible, which means all vehicles from 1996. These OBDII scan tools work well on all cars that run in the UK, USA, and Asia, provided they are OBDII compatible.

Software and updates

Out of the three, TOPDON AL500 is the only one that requires regular software updates; this happens automatically using the Windows operating system. A USB port is at the bottom side of the AL500 that takes care of the updates, so all you have to do is add the USB cable to your car, and the update happens automatically.

Pros and cons of AL200 vs. AL300 vs. AL500

Moving on, we will look at each product’s pros and cons to give you a quick idea of which of these is best TOPDON OBDII diagnostic tool for you.

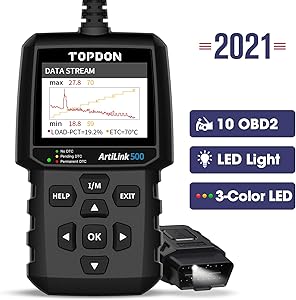

TOPDON AL500 OBD2 scan tool

TOPDON AL500
TOPDON AL500 OBD2 scan tool
4.4

Pros

  • Free lifetime update via PC
  • Wide vehicle coverage
  • LED indicator shows different colors for different problems
  • Provides detailed descriptions
  • Helps with Smog test

Cons

  • Annoying software installation
  • A mismatch between hardware and software.

Check Price at Amazon

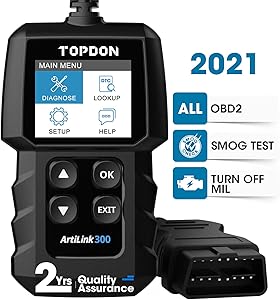

TOPDON AL300 OBDII code reader

TOPDON AL300
TOPDON AL300 OBDII code reader
4.6

Pros

  • Simple and user-friendly design
  • Gets the codes fast
  • Covers all vehicles that run in the UK, U.S, and Asia. Supports all models from 1996.
  • Intuitive interface
  • Comes with a built-in library

Cons

  • Does only basic diagnostics
  • Does not work well with SRS and ABS systems
  • No advanced features

Check Price at Amazon

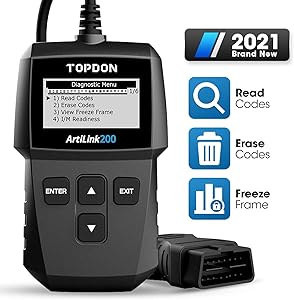

TOPDON AL200 OBD2 scanner

TOPDON AL200
TOPDON AL200 OBD2 scanner
4.6

Pros

  • Easy to connect
  • Quick diagnosis
  • Intuitive and straightforward to use
  • Supports BMW vehicles and all OBD2 protocols.
  • Offers functionality in multiple languages

Cons

  • No advanced features
  • Does not support the ABS
  • Ideal only for simple diagnostics

Check Price at Amazon

Recommendation

Coming to the recommendations, both TOPDON AL200 and AL300 are relatively basic models that can give you just the information you want. The good news is that no prior knowledge is necessary to use these equipment types, thereby making them the ideal choice for beginners.

However, if you’re looking for advanced information, go for AL500. This TOPDON scanner is also a more comprehensive choice for DIYers and mechanics familiar with its use. Further, this model requires frequent updates, and that could make it challenging for beginners.

Since all the three models work on cars manufactured since 1996, it can work on any car in the UK, U.S, and Asia.

Also, TOPDON AL500 is your go-to model from a usability standpoint, as it comes with hotkeys and LED lights. It can record all the diagnostic data to use it at any time for future analysis.

FAQs

Will TOPDON AL500 work with iOS?

💡 No, AL500 does not work with iOS systems; only Windows is possible. If you have any problems concerning installation, check the manual or reach out to customer support.

Does the TOPDON AL300 check the pre-inspections?

💡 Yes, the AL300 provides pre-inspections so that you can save multiple trips to the mechanic. Also, it can tell you if the vehicle is ready for state inspections.

Will TOPDON AL200 work with ABS systems?

💡 No AL200 does not work with ABS systems, but it runs well on all car models that are OBDII compliant.

How to fix the “Linking Error” message?

💡 To fix this error, try one of the following ways.

  • Check if the vehicle is OBDII compliant.
  • See if the cable of OBDII is in good condition.
  • If you think there are any connections or wiring issues in the vehicle, fix it first.
  • Check if this scanner works well on other OBDII cars to ensure that the problem is with the scanner.
  • When nothing works, reach out to customer support for help.

What is the use of the LED indicator?

💡 The LED indicator is color-coded to give you more detailed information about the criticality of the issue.

  • The green color indicates that there are no faults in the vehicle.
  • Yellow indicates that there are pending fault codes.
  • Red indicates that there are permanent fault codes.

Based on this color coding, you can decide how soon you need to take the car to a mechanic for fixing. If you plan to do it yourself, you can schedule it based on the severity.

Final thoughts

Overall, the OBD2 scanners give detailed information about the health of your vehicle. These TOPDON scan tools give you the right information necessary to understand what is wrong with your car and its urgency to plan the fix accordingly.

When you compare TOPDON AL200 vs. AL300 vs. AL500, you can understand that the first model is a basic one, while the other two are more comprehensive. So, the choice of the right TOPDON scan tool depends on your preferences and needs.
